Rebuilding the 3SGTE (continued)

Fuel and Intake System - Part 2

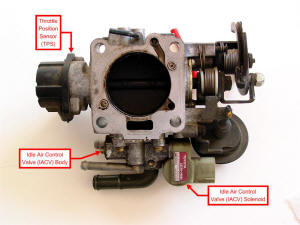

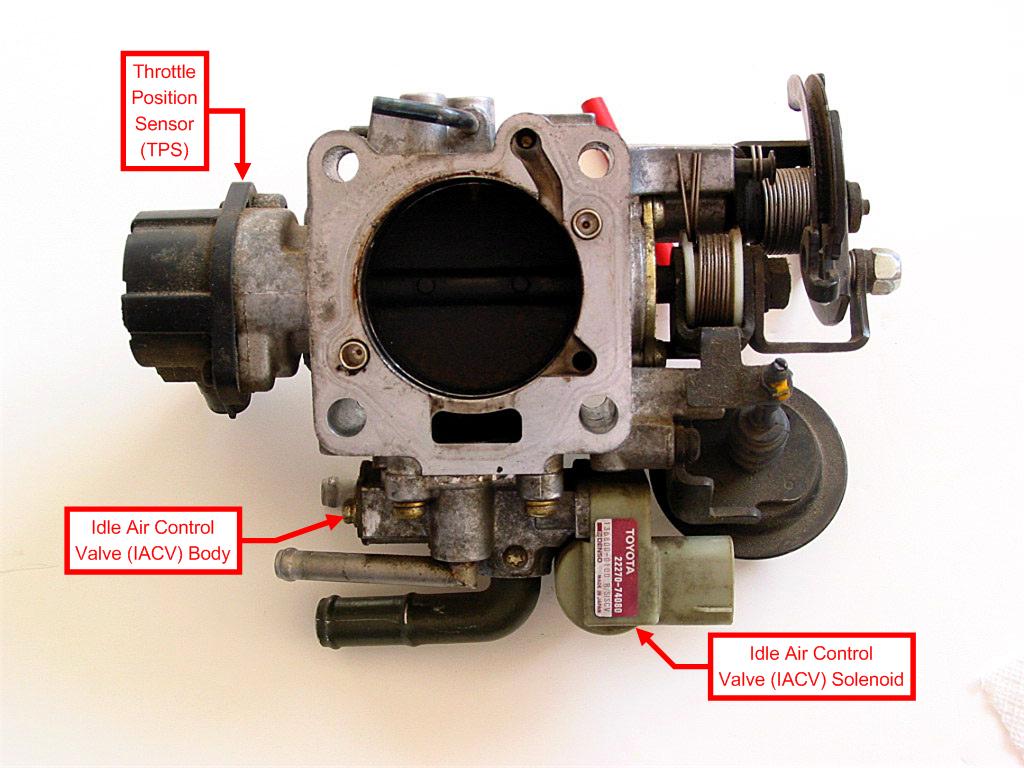

  The throttle body was next. Because the TEC│ will use its own Idle Air Control Valve (IACV) circuit for controlling idle, I had to make a modification to the stock IACV, which attaches to the bottom of the throttle body:
Click to enlarge
The modification will keep the stock IACV in its fully open position, so that the TEC│ IACV can take over its functionality.


  The IACV uses a solenoid to open and close an air valve. Although the solenoid will be disconnected, its permanent magnet will be used to keep the air valve in the open position.

First, remove the IACV assembly from the bottom of the throttle body.

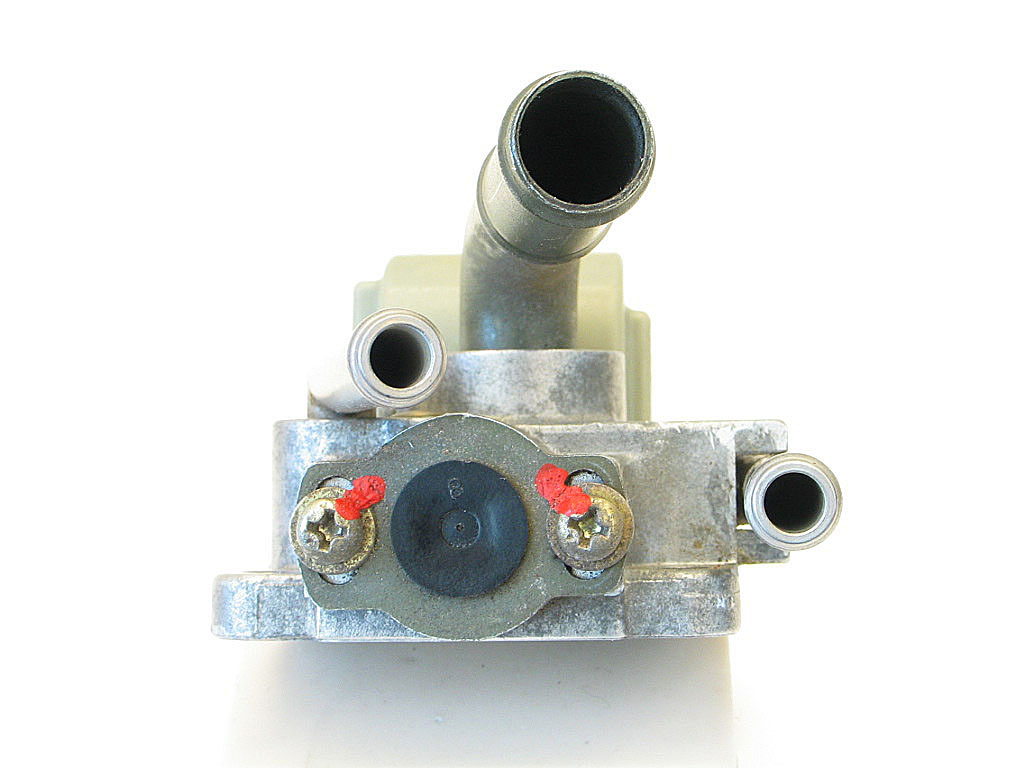

  Next, remove the two screws that hold the spring assembly into position:
Click to enlarge

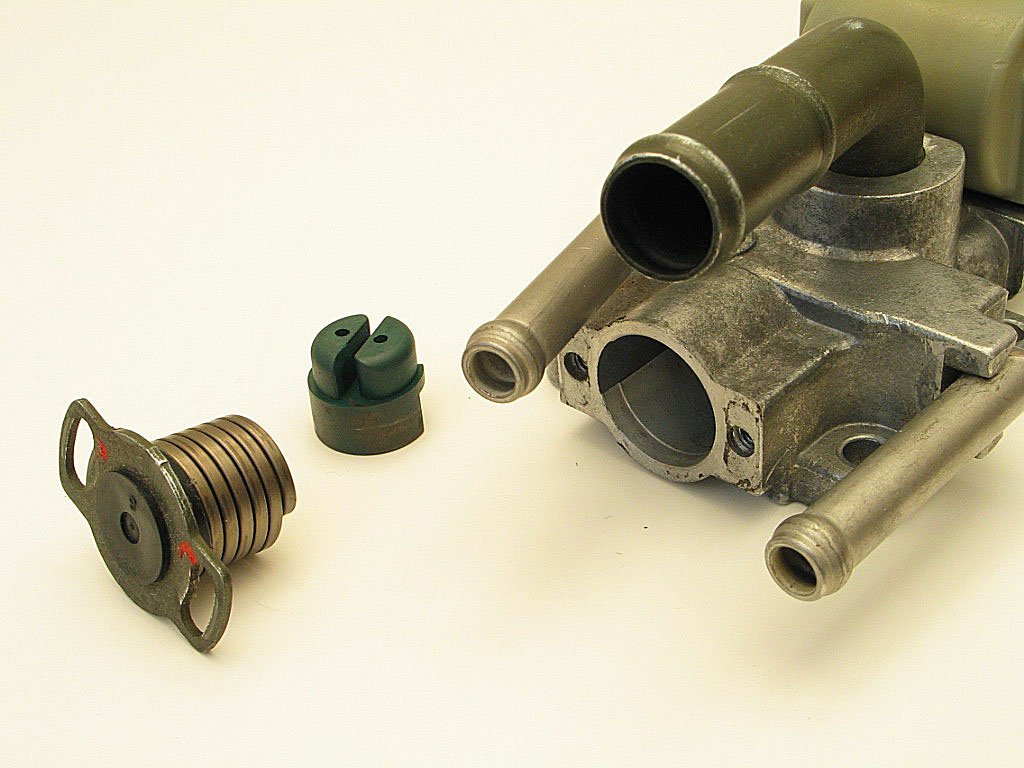

  Remove the coil spring and the plastic insert:
Click to enlarge

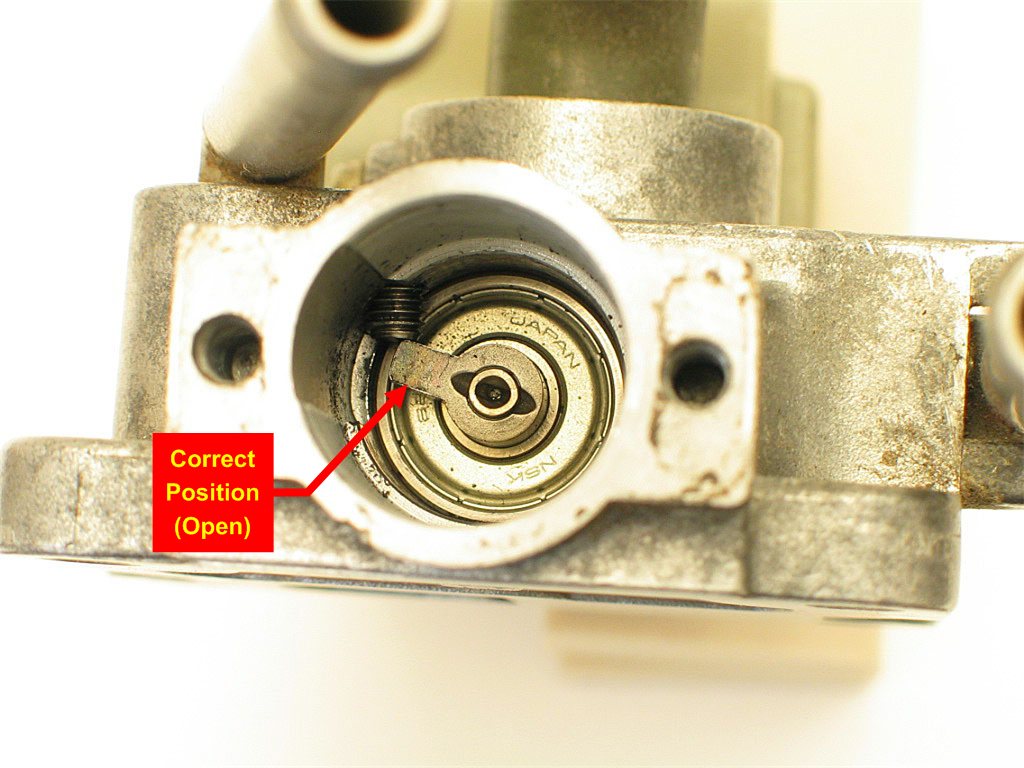

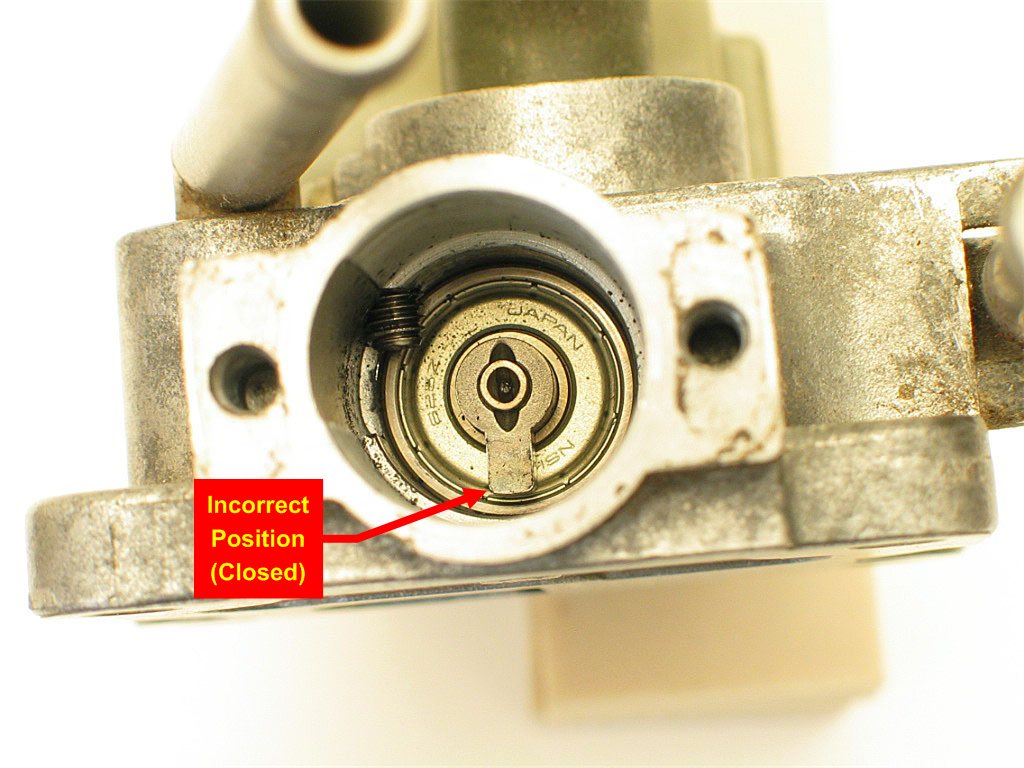

  Peer inside the opening and you will see a small arm attached to the end of a shaft. By rotating the arm with your finger, you will feel that it will snap into one of two possible positions, as the solenoid magnet is what keeps it in place. The photos below show those two positions:
Click to enlarge
Click to enlarge
If you turn the IACV over and observe the air valve, you can verify the correct position to keep the valve open.


  Make sure you position the arm in the correct position,  against the stop screw. Discard the plastic insert (or put it aside for returning the IACV to its stock configuration), as it will not be used. Reassemble the coil spring assembly. Without the plastic insert to engage the arm, the magnet on the solenoid will maintain the arm in its correct position.


  Re-attach the IACV assembly to the throttle body.


  I disassembled most of the throttle body to clean it, and I made the mistake of trying to remove the two small screws that hold the throttle butterfly in place. As luck would have it, both of the the heads in these small (M4) screws stripped right out. To make matters worse, I broke off a small drill bit trying to drill out one of the screws!

In the end, I was able to get both of the screws out using patience and liberal swearing. However, when I tried to replace these screws, Toyota told me they had no part number listing -- they were only available as part of the entire throttle body.

OK, I thought, I'll just find some M4 screws of the right size and use those. Right. It turns out these screws have a special small head size and even the angle on the head is non-standard.

I tried grinding down the heads on some flat-head screws, but the head crumbled once the slots were reached, regardless whether I used Phillips or slotted screws.

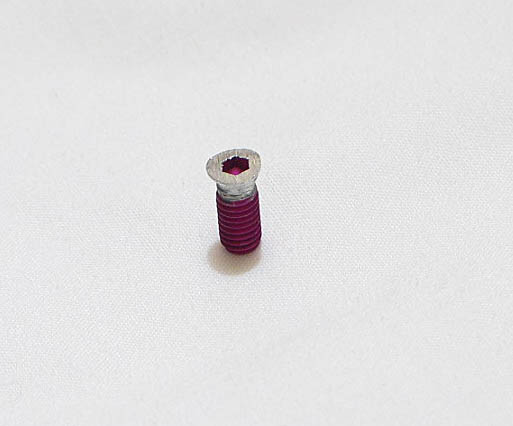

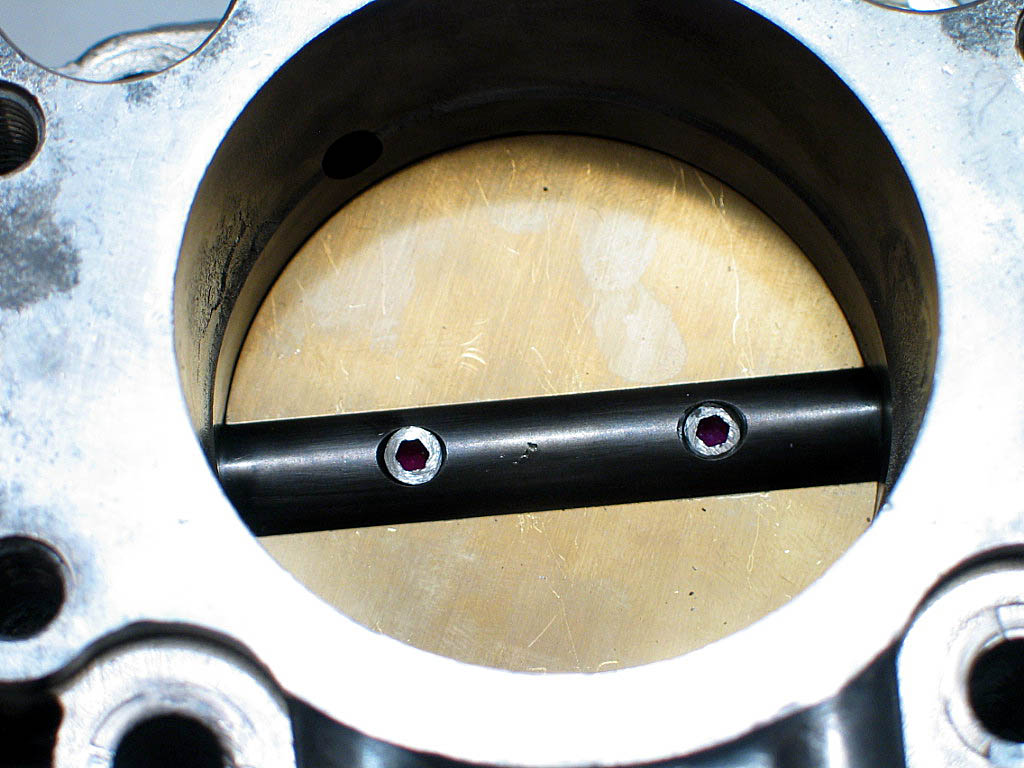

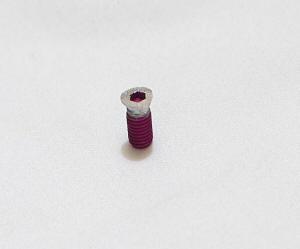

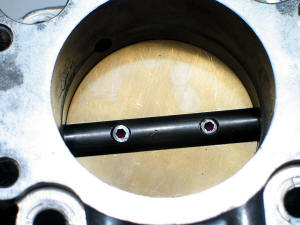

Finally, I located a vendor, Fastener Express, that sells M4 flat-head screws with a hex socket head. These were aluminum, so they would be easy to grind, except for their tiny size. With patience (and more swearing), I finally fabricated replacements for the butterfly screws:
Click to enlarge
Click to enlarge

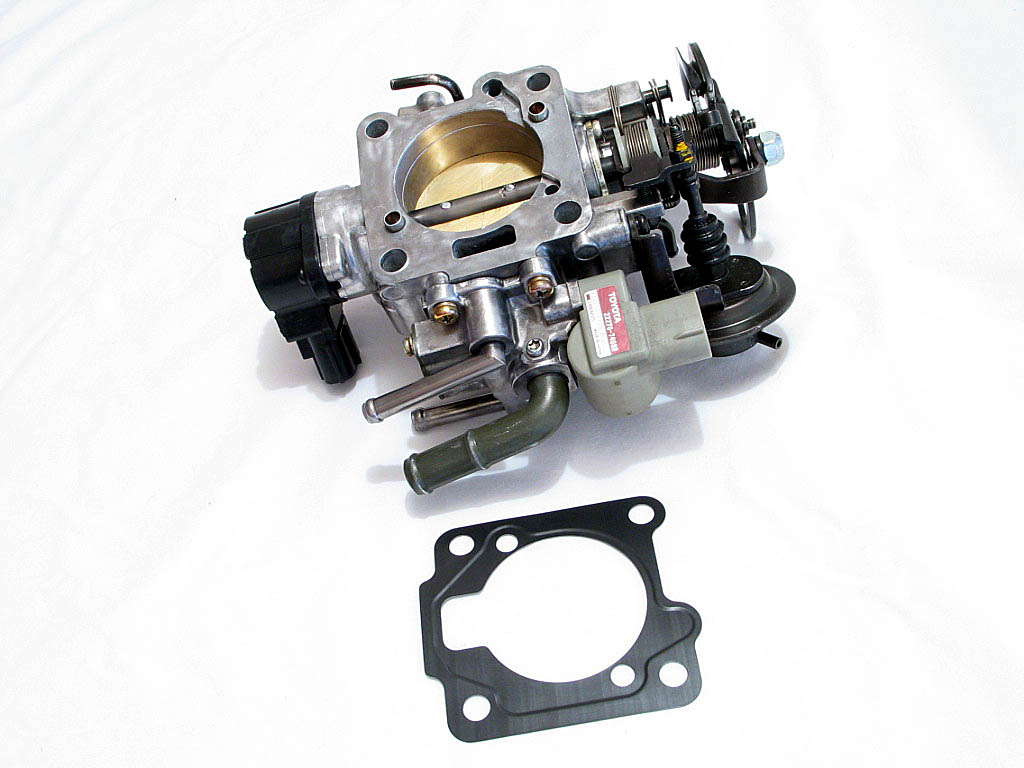

  Here's a photo of the cleaned-up throttle body with a new gasket (Toyota Part No. 22271-88381):
Click to enlarge

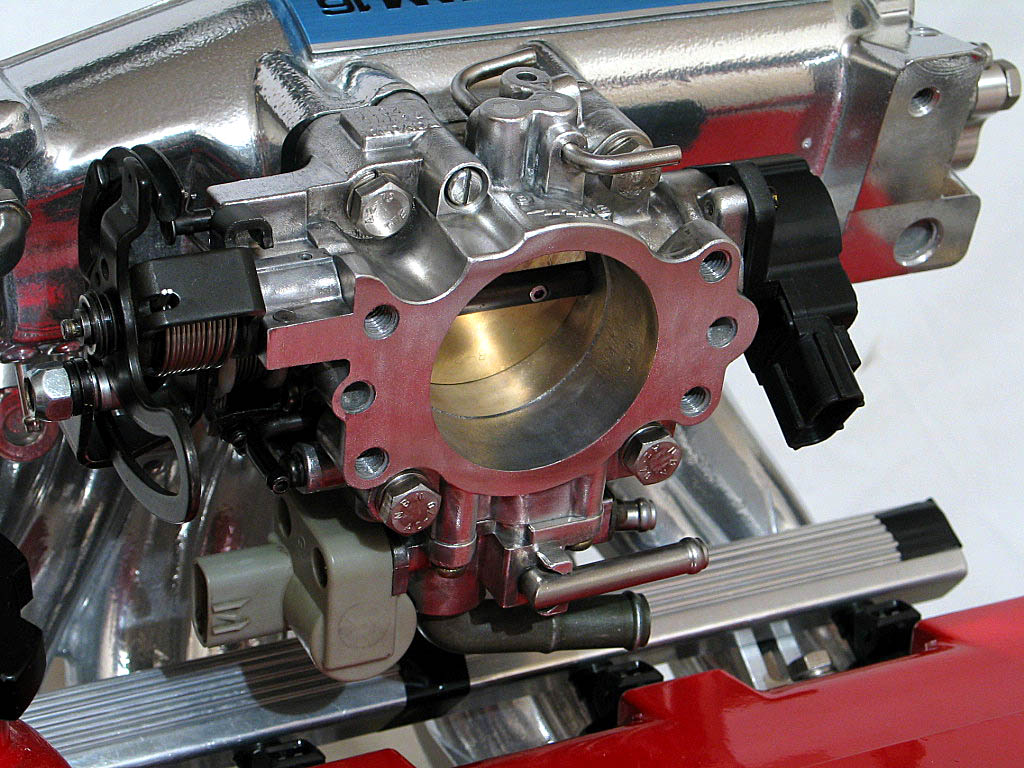

  Installing it is a breeze:
Click to enlarge

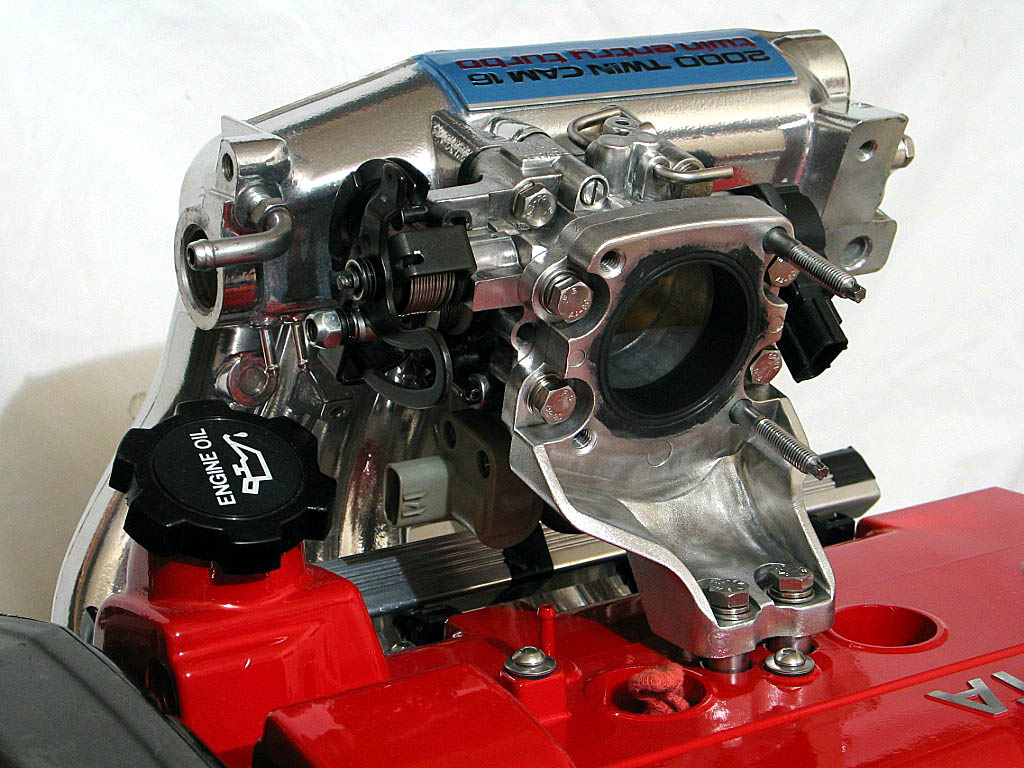

  Next comes the throttle body support piece, which Toyota calls the Air Connector Stay:
Click to enlarge
I had a small problem here. This is a '91-92 valve cover, which uses two cylindrical standoffs to support the Air Connector Stay. The bolts are M8, and the thread in the top of the cylinder head is M8, but the spacers are sized smaller. I just drilled them out to accept the M8 bolts.

I decided to remove the studs on the Air Connector Stay and use stainless bolts to attach the air horn. With all the components fitting as they should, I torqued down the intake manifold to spec. I then went back and tightened the two long bolts securing the throttle body to the cylinder head.


  I needed to provide the Tial wastegate and the TurboXS blow-off valve (BOV) with vacuum/boost lines, and Tial recommended that these lines come from the throttle body but before the throttle butterfly. All of the existing pressure nipples were located on the intake manifold, which is after the butterfly.

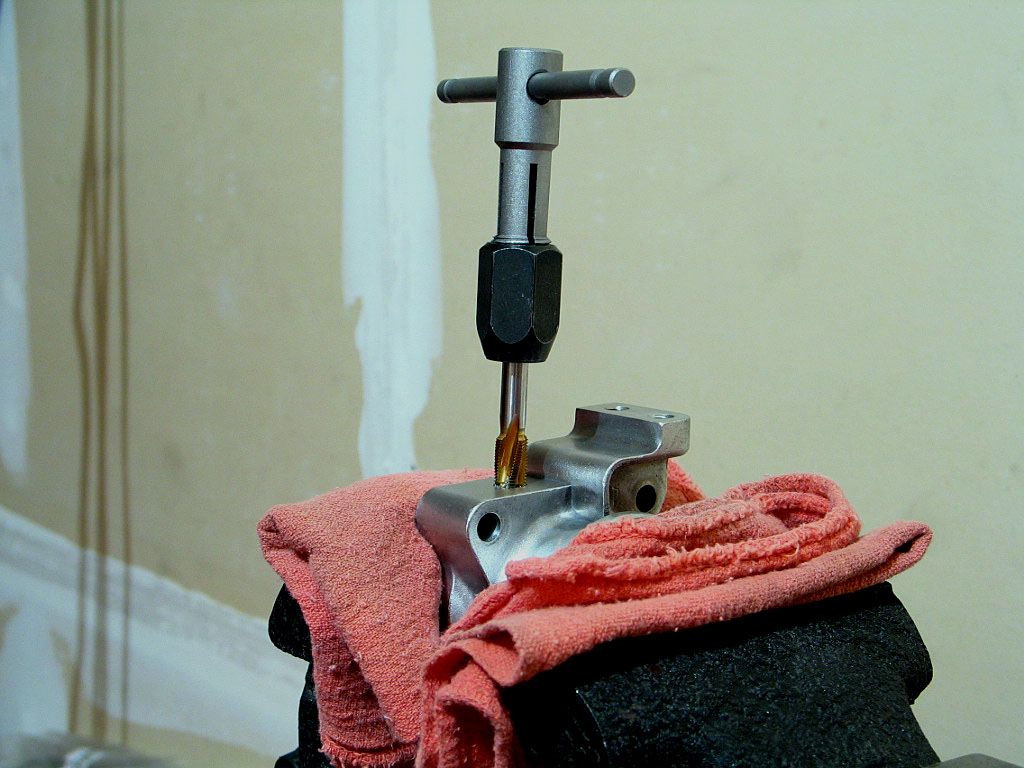

I decided to tap a couple of ⅛" NPT holes in the base of the throttle body's air horn (Intake Air Connector). There was room to access this location and plenty of material for support:
Click to enlarge

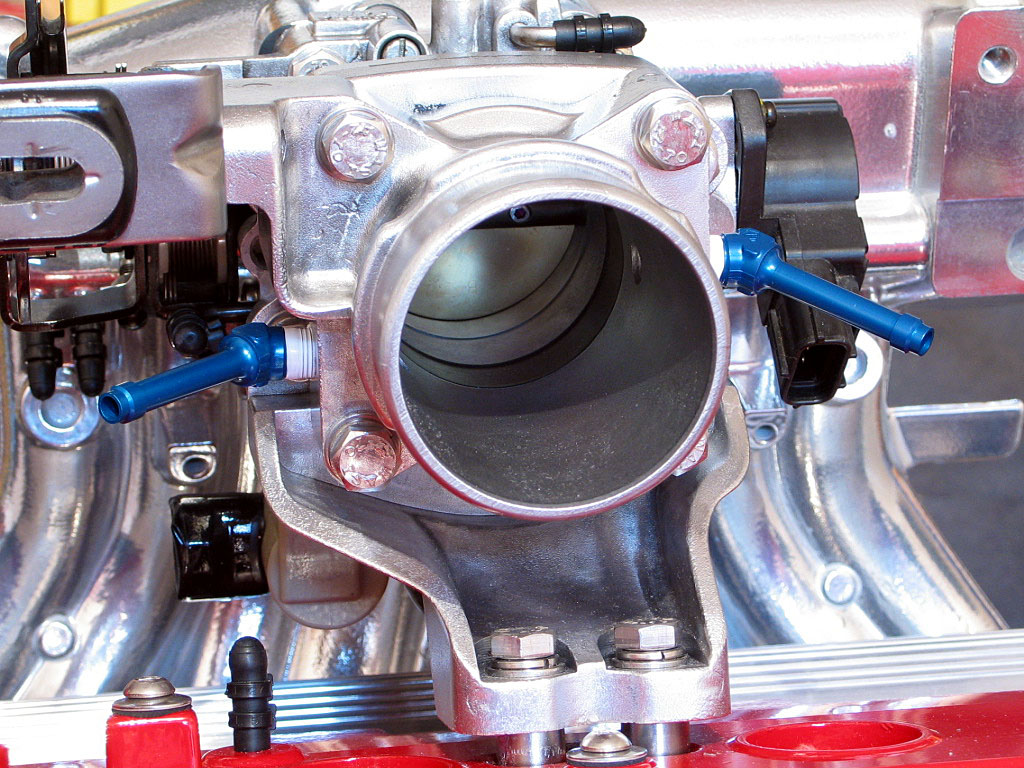

  With the holes drilled and tapped, I wrapped some Teflon tape on the threads of a couple of 45║ ⅛" NPT x ╝" hose barbs and installed them into the air horn. I then installed the air horn onto the throttle body and tightened down the bolts:
Click to enlarge


  I didn't intend to reconnect the throttle body coolant lines, so I simply capped off the nipples on the IACV body.




Continued on next page...
