Installing a TurboXS Type H34 Racing Bypass Valve
The TurboXS H34 BOV is designed for high-boost applications. The manufacturer claims that this BOV flows 35% more than its "standard" Type H unit, and recommends this for applications running between 10-25 PSI of boost.

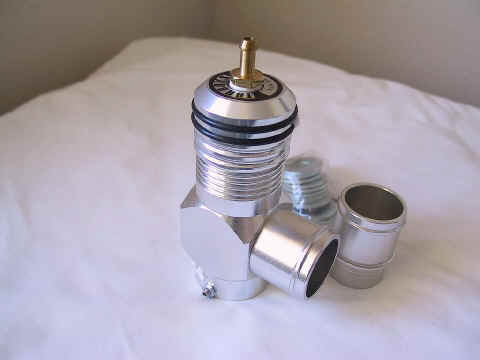

I also ordered the adapter kit for fitting the unit to the MR2's intake pipe. Here are two photos displaying the included components:

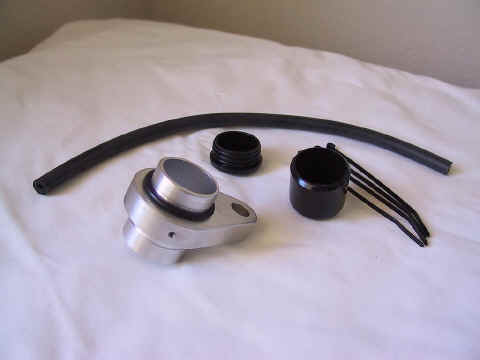

 TurboXS Adapter Kit.JPG (46706 bytes)


Tools/Materials Needed

  • Needle-nose pliers

  • 12mm socket or wrench

  • Tools for loosening and tightening hose clamp.

  • Checker #B71468 hose


Doing It

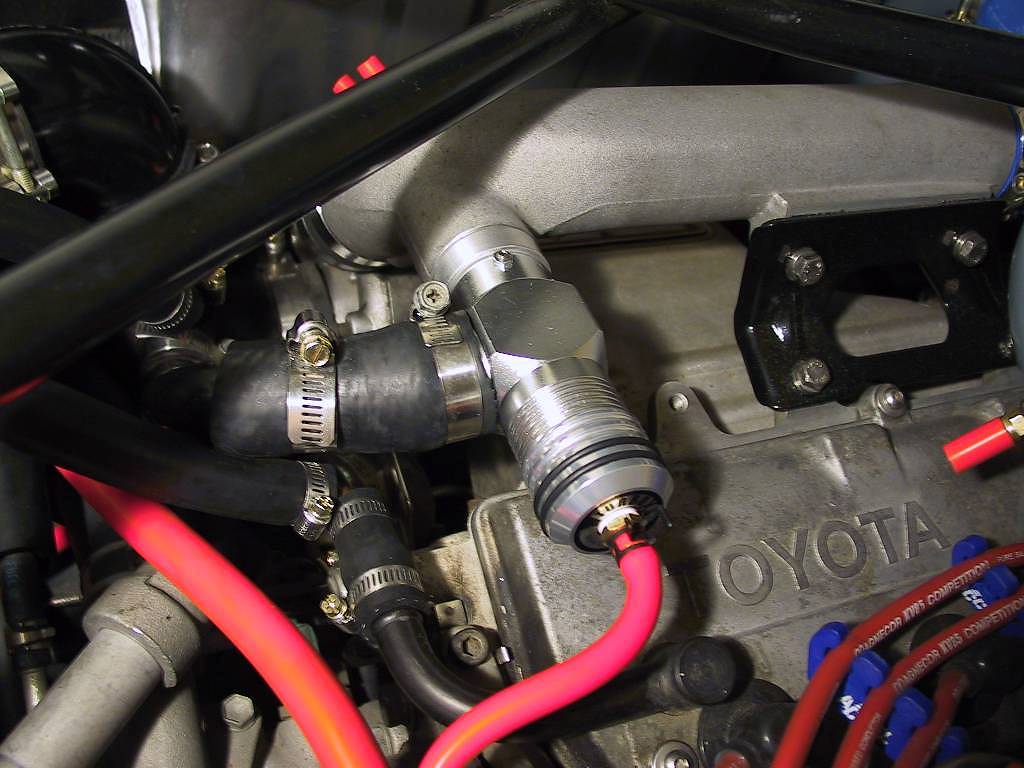

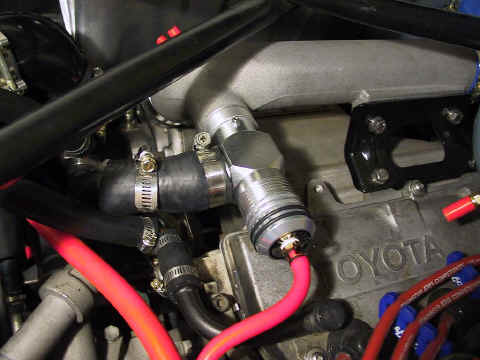

TurboXS Finished Install.JPG (93159 bytes)

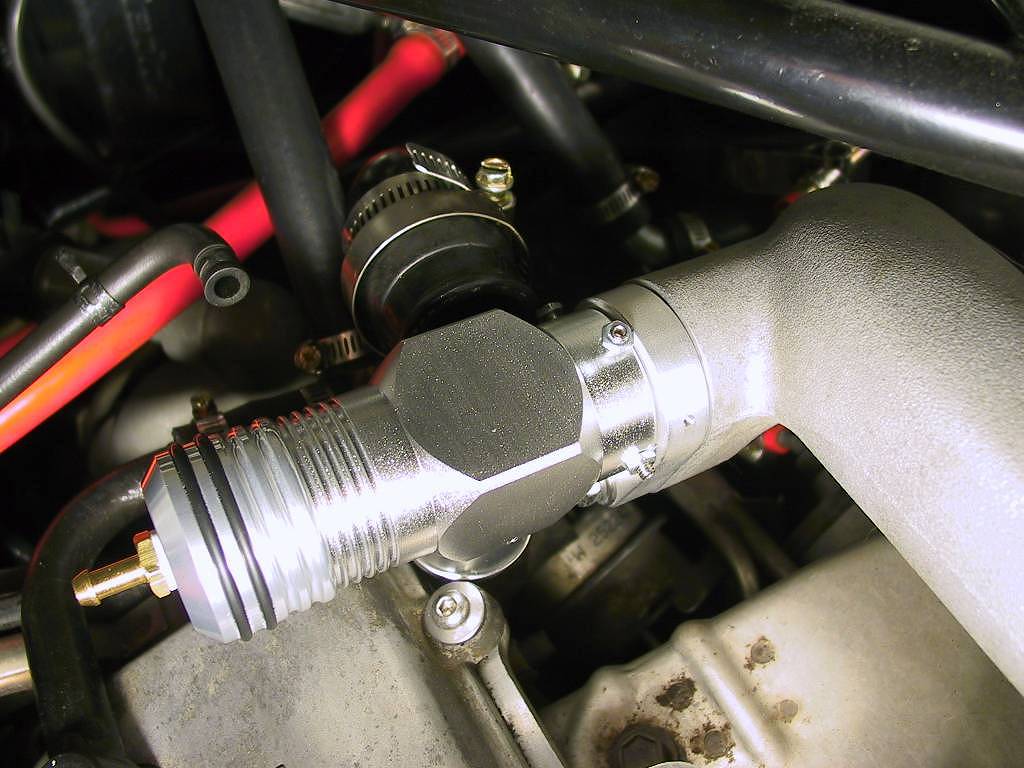

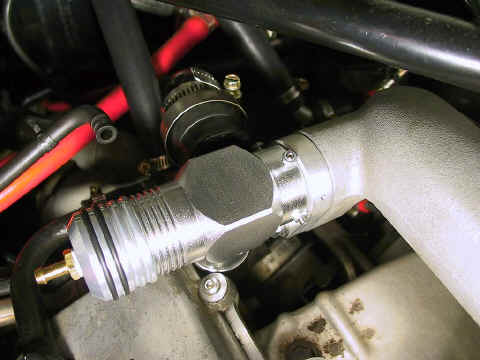

TurboXS Installed-01.JPG (99289 bytes)

Dave Martin
1993 MR2 Turbo
